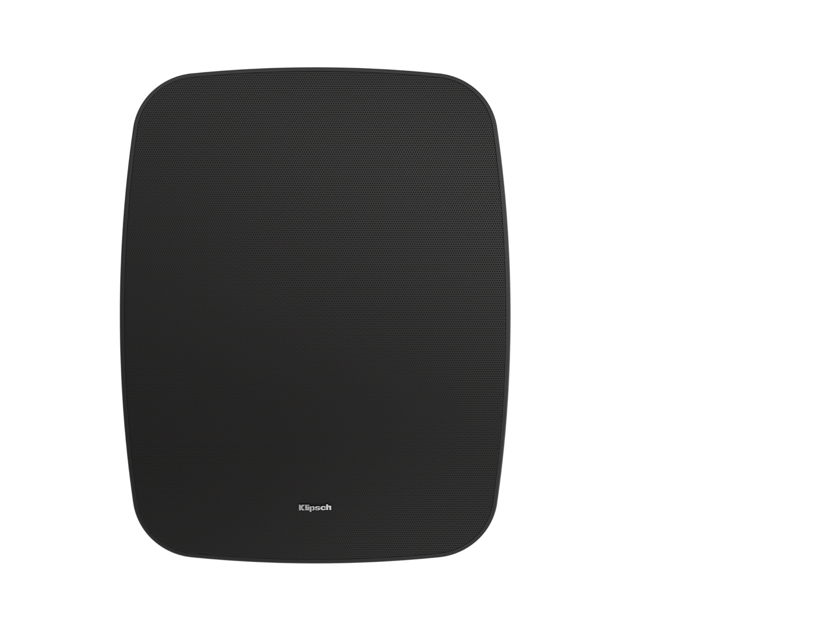

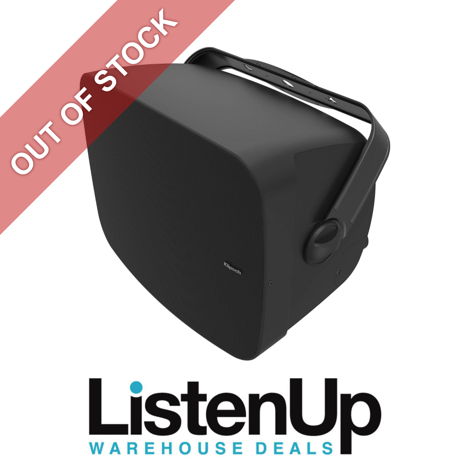

Klipsch PSM-800-T 8" 2-Way Professional Surface Mount Loudspeaker (Each) - Black

Klipsch PSM-800-T

The Klipsch PSM-800T is a professional-grade speaker designed for diverse environments and engineered for sound reinforcement applications like concerts and conferences.

• More bass, less space with the all-new Tractrix® Hyperfold Port™
• 1" Titanium Compression Driver for effortless, high-clarity detail
• IPX6 Rated for even the most challenging commercial environments
• Multi-tap transformer for 70 or 100 volt installations, includes bypass position
• Set screws on grille
• Phoenix Connector for simplified installation
• Paintable, rust-proof aluminum grille

MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, the all-new patented Tractrix® Hyperfold Port™ is engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 RATED FOR COMMERCIAL ENVIRONMENTS

Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-800-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be water-resistant and rain-proof for the most challenging commercial environments.

MULTIPLE TAP SETTINGS

The PSM-800-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

SET SCREWS ON GRILLE

The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1" TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL

Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-800-T gives any space extra-wide coverage while providing even and consistent energy for your project.

PHOENIX CONNECTOR FOR SIMPLIFIED INSTALLATION

The PSM-800-T employ a phoenix connector for quick and intuitive connection.

SPECIFICATIONS:

• FREQUENCY RESPONSE: 52Hz-20kHz +/- 4dB, 44Hz -10dB
• POWER HANDLING: 100 watts (21V) 50Hz-10kHz (400 watts peak)
• CALC. MAX. CONT. OUTPUT: 109dB
• SENSITIVITY: 92dB
• COVERAGE: 100° +/- 20° 1kHz-20kHz
• DIRECTIVITY INDEX: 7dB +/- 1.5dB 800Hz-20kHz
• NOMINAL IMPEDANCE: 8 ohms 4.2 ohms at 150Hz minimum
• ACOUSTIC CROSSOVER: 2kHz
• TRANSDUCERS: 8" woofer, 1" titanium compression driver, on a K-1200M horn/tweeter bridge
• ENCLOSURE MATERIAL: All Weather ABS Plastic, Paintable
• IP RATING: IPX6
• ENCLOSURE TUNING: Vented via 3 folded Tractrix ports
• INPUT CONNECTORS: 4 pin euro block
• TRANSFORMER TAPS: 70V: 100W, 50W, 25W,12.5W; 100V: 100W, 50W, 25W; Bypass position: 8 ohms nominal
• DIMENSIONS: [WITH BRACKET]: 15.5”(394mm) x 12”(305mm) x 9.31”(237mm) [11.12”(283mm)]
• WEIGHT: 15.75 lbs (7.15kg)
