Audio Artistry Beethoven Speaker System

Consignment  Sale

Condition 4/10 due to no packaging and some fading

No Packaging – Local Pickup Only

Asking:$4700

MSRP:$25,000

Description

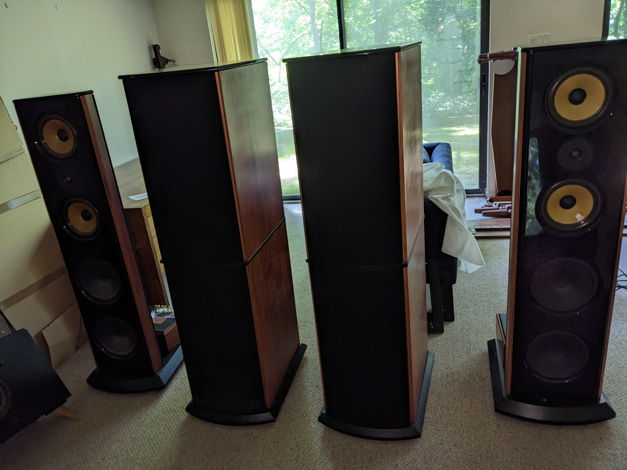

We are assisting an estate of an audiophile sell several sets of speakers.  In this ad we are listing his Audio Artistry Beethoven Speaker System.

These speakers were in his basement and have not been tested, so they are being sold AS-IS.  We only have a few of the boxes, so this is pickup only in McLean VA.  Please note that the finish on one speaker and one sub have faded from being in the spotlight.

You can get more info on the speakers at:
https://audioartistry.com/products_beethoven_specs.htm
https://stereophile.com/content/audio-artistry-beethoven-loudspeaker-system


The Beethoven Loudspeaker System consists of two Main Panels with external passive crossovers, two Woofer Units and an active Crossover/Equalizer. Two stereo amplifiers or four mono blocks are required to drive the Main Panels and the Woofers.
Complete System

• Frequency response: 20 Hz to 25 kHz, +/-2.5 dB
• Sensitivity: 89 dB at 1 m, 2.83 V
• Radiation pattern: dipole below 1500 Hz
• Room size: 300-600 sqft (26-55 sqm)
• Listening distance: 8-18 ft (2.4-5.4 m)
• Placement: 2.5 ft (0.75 m) minimum distance to adjacent walls for Main Unit. Woofer in plane of Main Unit, along side walls.

• Frequency range: 100 Hz to 25 kHz 1" soft dome, two 8" Kevlar, two 10" paper drivers each panel. The low frequency range of the Main Panels is automatically extended to 40 Hz when the Woofers are switched off.
• Min. Amplifier power: 35 W, vacuum tube; 100 W, solid state
• size: 55"h x 13.75"wx 6"d (1.40 x 0.35 x 0.15m)
• Weight: 85 lbs (39 kg)
• Crossover: External, 3-way. Low-Mid-High, 200 Hz and 2 kHz transitions
• Impedance: 5 ohm nominal, 3.3 ohm min. at 100 Hz Weight 18 lbs (8.2 kg)
• Amplifier power: 200 W, solid state, 0.1% distortion or better, 20 or better damping factor, including cable.

• Frequency range: 20 Hz to 100 Hz Four 12" drivers each dipole woofer. The woofer output level is aligned by A-B switching between the Main Panels alone and the Main Panels with Woofers
• Amplifier power: 50 W, solid state
• Impedance: 13 ohm nominal, 11 ohm min.
• size: 29"h x 14.75"w x 21.5"d (0.71 x 0.37 x 0.55 m)
• Weight: 95 lbs (43.1kg)

• Gain: unity, non inverting
• Input: XLR balanced, 20k ohm, active circuitry with 140 kHz lowpass filter for RFI rejection, trans- former coupled version optional
• Output: XLR balanced, 200 ohm (optional XLR to RCA adapters for input or output, pin 2 hot, pin 1 3 connected to RCA shield)
• Controls:
  • Normal/Video 40 Hz, -6 dB/oct highpass Off/On
  • Woofer Level 12 dB range with knob, Offset 0/- 12 dB with internal jumpers (J3, J4)
  • Woofer On System crossed over at 100 Hz
  • Woofer Off Main Panel equalized down to 40 Hz
  • Mute On -20 dB either channel
• XLR connectors: Pin 2 (+), pin 3 (-), pin 1 (chassis/ signal/safety ground), can be dis- connected from input connector with internal jumpers (J1, J2)
• DIN connector: Pin 2 (+12 Vdc/0.13 A), pin 4 (-12 Vdc/0.13 A), pin 5 shell (chas- sis/signal/safety ground)
• size: 2.5"h x 17"w x 8"d (0.06 x 0.43 x 0.20m)
• Weight: 13 lbs (5.9 kg)
• Power supply:External, plug-to-plug, UL/CSA approved
• Output: +12 Vdc/0.5 A, -12 Vdc/0.5 A
• Weight: 5 lbs (2.3 kg)
